Synergie tree grates

Square 1000

Square 1200

Square 1500

Rectangle

Round 1200 P

Round 1500 P

Round 1200 circular

Round 1500 circular

Tree grates for trees made from solid steel, thermo-lacquered by polyester powder coating. Consisting of two elements fastened together by screws then placed in a galvanised frame to be sealed.

Compliance with standard P98-350.

Opening for trunk: 540 mm – thickness 45 mm

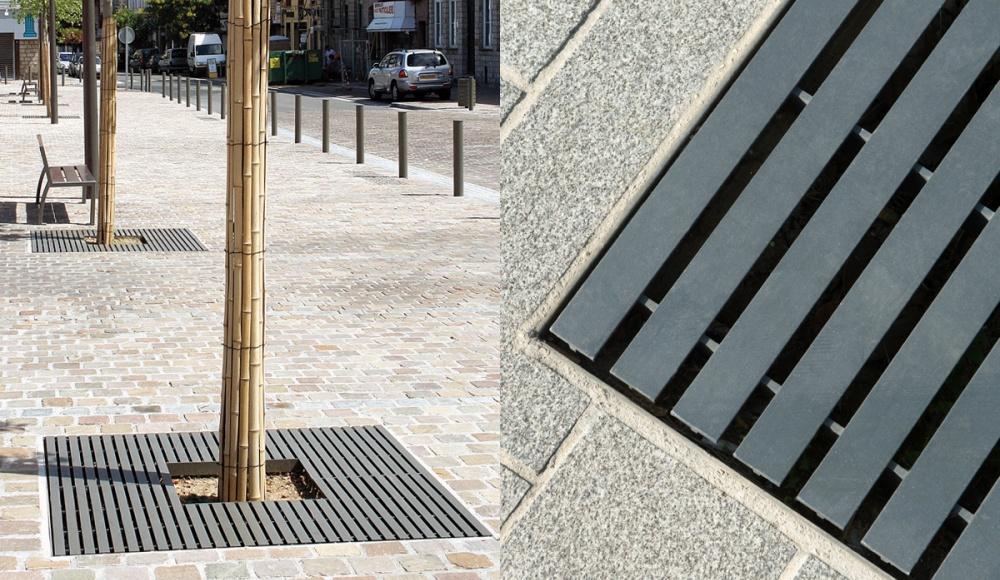

Square 1000 – External frame dimensions: 1005 x 1005 mm
Square 1200 – External frame dimensions: 1200 x 1200 mm
Square 1500 – External frame dimensions: 1480 x 1480 mm

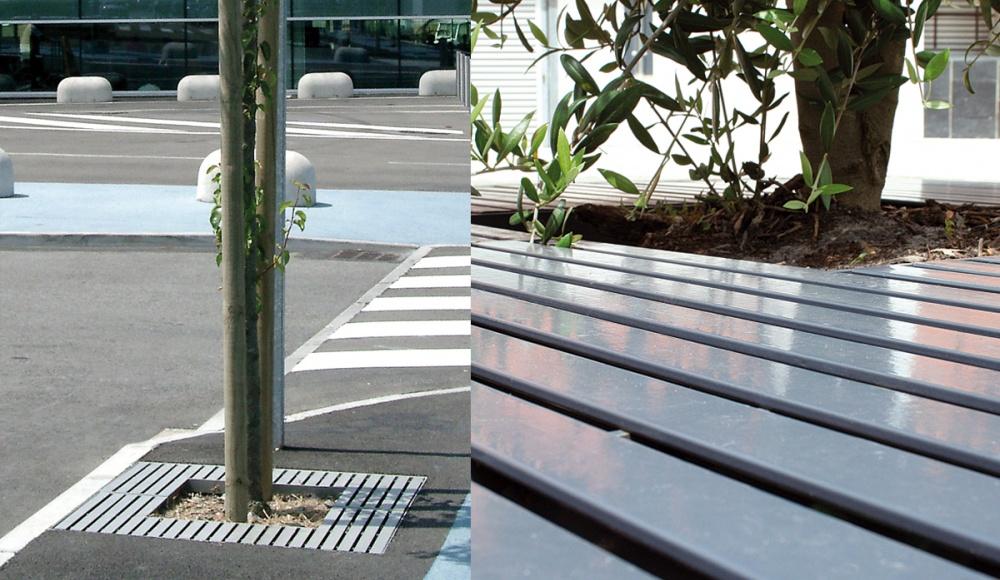

Rectangular – External frame dimensions: 1480 x 1005 mm

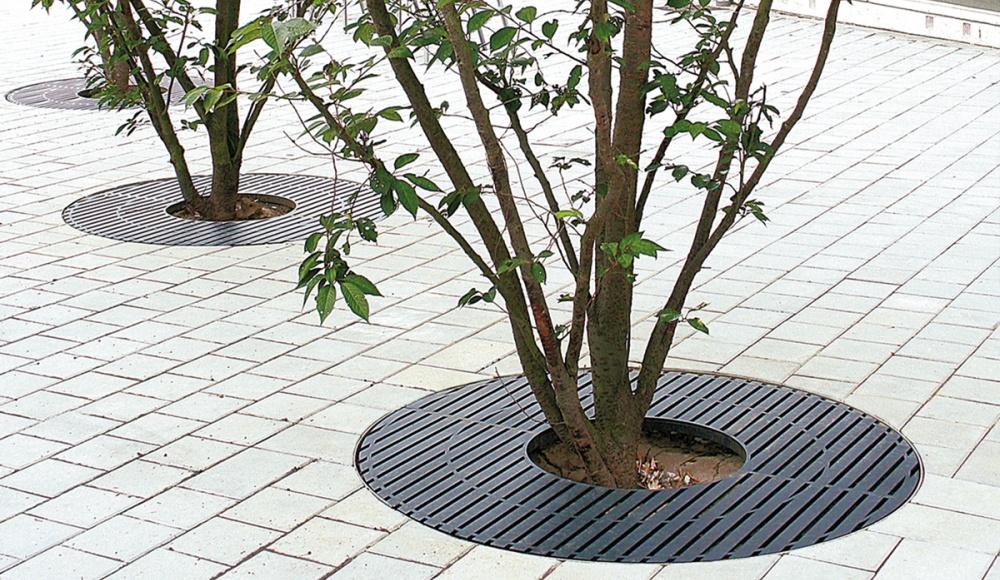

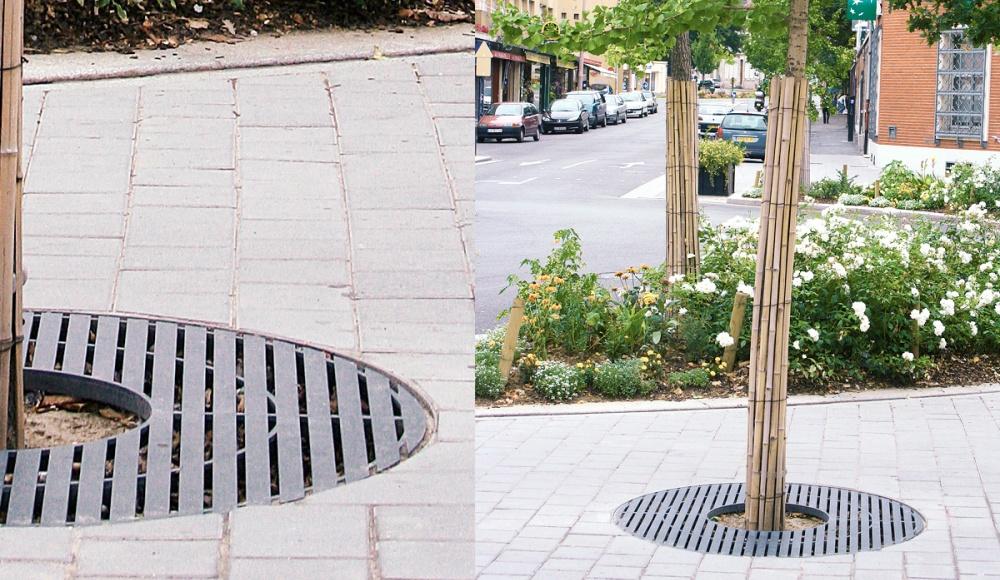

Parallel round ø 1200 – External frame dimension: ø 1200
Parallel round ø 1500 – External frame dimension: ø 1480

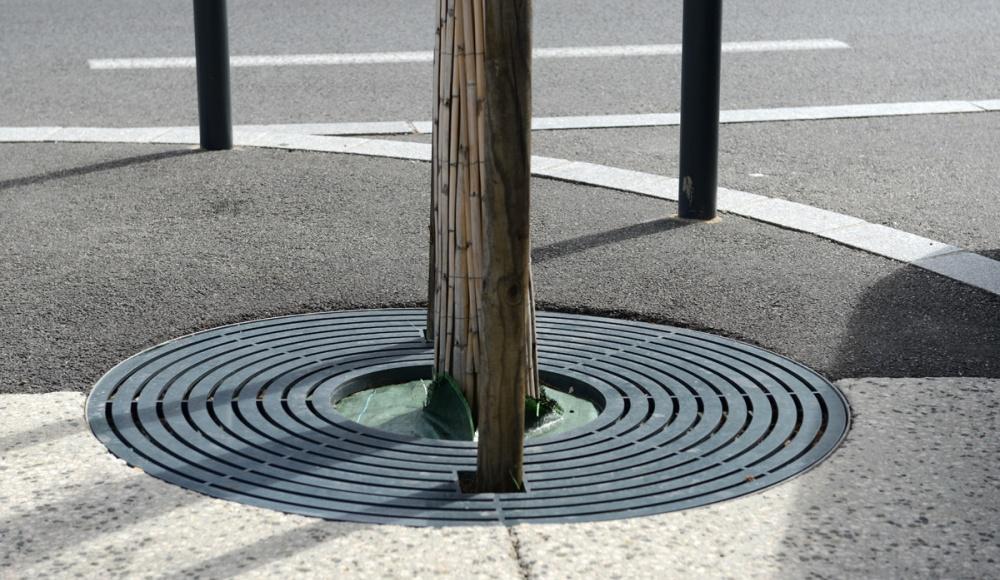

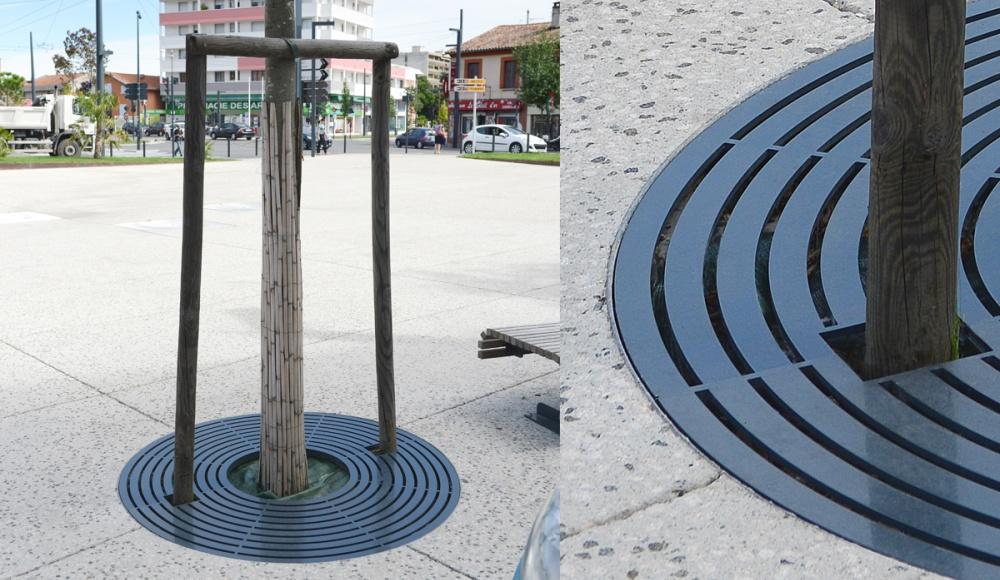

Circular round ø 1200 – External frame dimension: ø 1200
Circular round ø 1500 – External frame dimension: ø 1480

Frame to be sealed: hot-dip galvanised.
Tree grate: Zinc coating then baked polyester powder coating.
More details in the Materials section​

Recess for spotlight
Drainage hatch

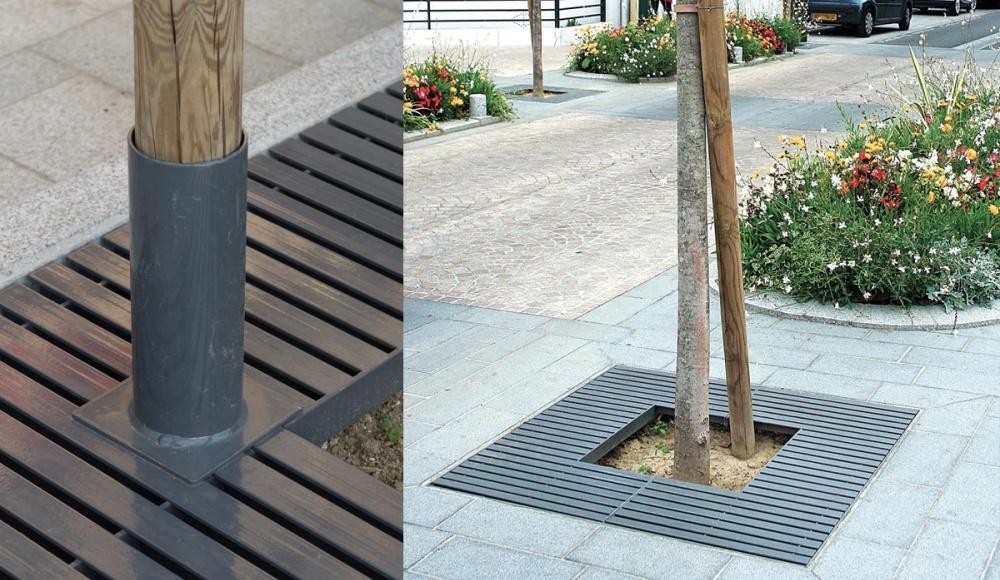

Hatch for wooden stake
Base for wooden stake

  • No technical datasheet
